TANK SLIM 330

DataSheet

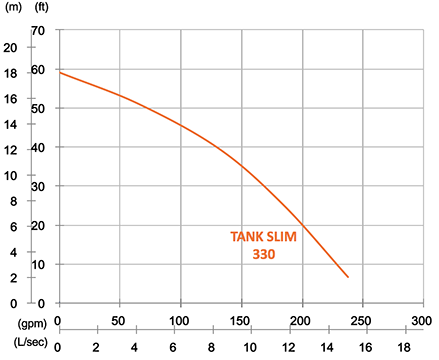

50Hz
  TANK SLIM 330
Discharge Outlet 80 mm (3")
Shaft Speed 2850 rpm
Rated Output 3 kW (4 HP)
Rated Head 12 m (39')
Rated Flow 8.3 L/s (132 gpm)
Max Head 18 m (59')
Max Flow 15 L/s (238 gpm)
Solid Passage 7 mm (0.3")
Diameter 188 mm (7.4")
Height 629 mm (24.8")
Weight 38 kg (84 lbs)
60Hz
  TANK SLIM 330
Discharge Outlet 80 mm (3")
Shaft Speed 3450 rpm
Rated Output 3 kW (4 HP)
Rated Head 12 m (39')
Rated Flow 8.3 L/s (132 gpm)
Max Head 18 m (59')
Max Flow 15 L/s (238 gpm)
Solid Passage 7 mm (0.3")
Diameter 188 mm (7.4")
Height 629 mm (24.8")
Weight 38 kg (84 lbs)

Download File

Brochure - Dewatering Pumps 50 Hz 60 Hz
Datasheet - TANK SLIM 330 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Closed
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07BQ-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Chromium Iron
 • Motor Frame Stainless Steel
 • Motor Shaft Stainless Steel
 • Outer Case Stainless Steel
 • Strainer Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
