SAVVY 600

DataSheet

50Hz
  SAVVY 600
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 0.55 kW (0.75 HP)

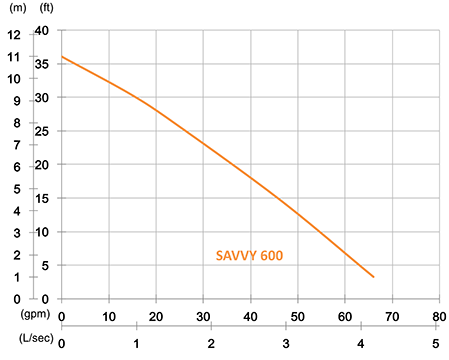

Rated Head 8 m (26')
Rated Flow 1.5 L/s (24 gpm)
Max Head 11 m (36')
Max Flow 4.2 L/s (66 gpm)
Solid Passage 6 mm (0.2")
Diameter 244 mm (9.6")
Height 341 mm (13.4")
Weight 6 kg (13 lbs)
60Hz
  SAVVY 600
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 0.55 kW (0.75 HP)
Rated Head 8 m (26')
Rated Flow 1.5 L/s (24 gpm)
Max Head 12 m (39')
Max Flow 4 L/s (63 gpm)
Solid Passage 6 mm (0.2")
Diameter 244 mm (9.6")
Height 341 mm (13.4")
Weight 6 kg (13 lbs)

Download File

Brochure - Handy & Residue Pumps 50 Hz 60 Hz
Datasheet - SAVVY 600 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 1-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Miniature Thermal Protector
 • Start Method Capacitor-Run
Lubricant Food Grade (ISO VG115)
Shaft Seal
 • Type Single Mechanical Seal
 • Desc. Ceramic / Carbon
Impeller Type Vortex
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 6m (20') or longer upon request.
Materials
 • Pump Casing Synthetic Polymers
 • Impeller Synthetic Polymers
 • Motor Frame Stainless Steel
 • Motor Shaft Stainless Steel
 • Strainer Synthetic Polymers
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 10m (33")
pH Range pH 5 - pH 8
