SMART VOX BASE 400

DataSheet

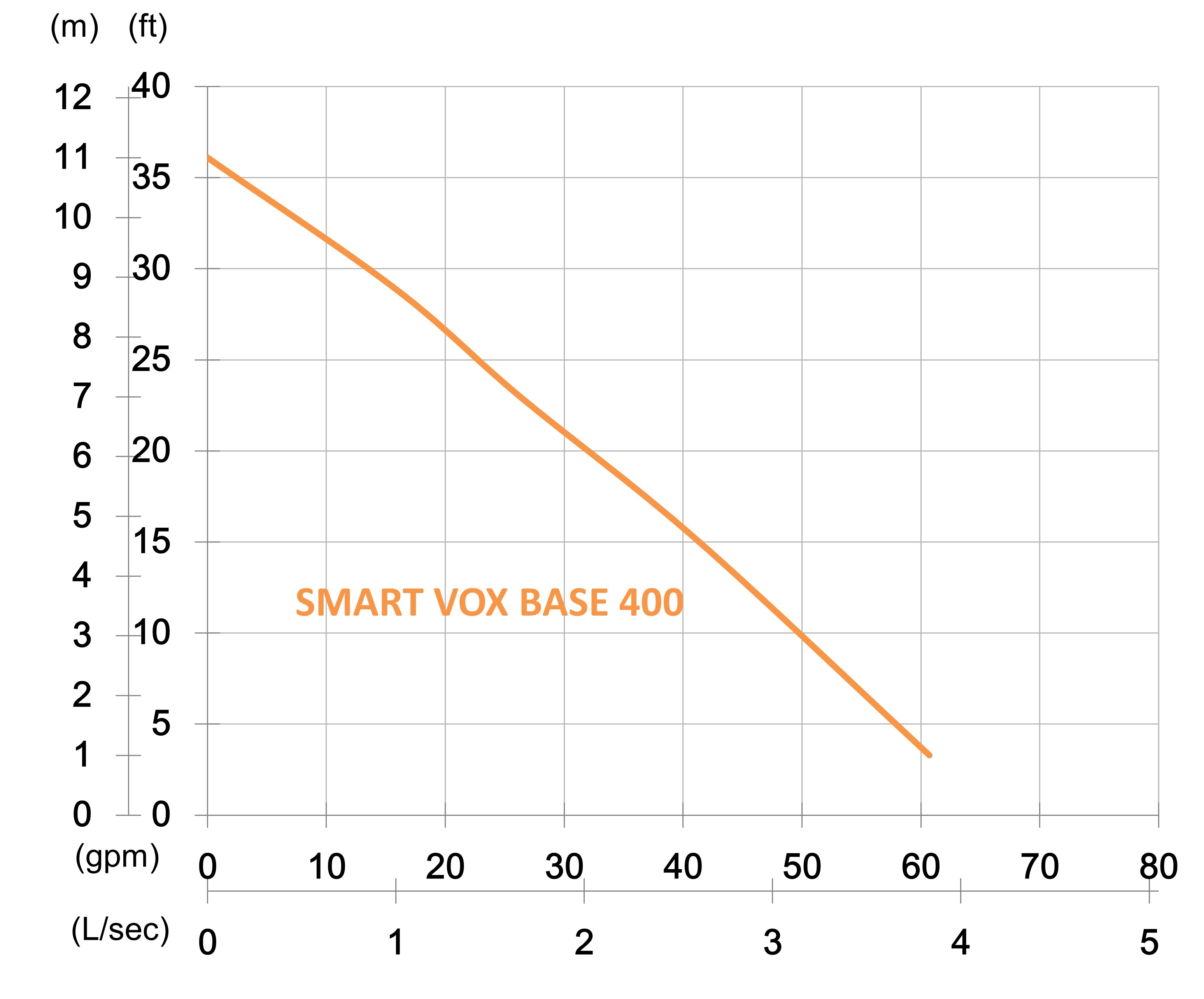

50Hz
  SMART VOX BASE 400
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 0.4 kW (0.5 HP)
Rated Head 8 m (26')
Rated Flow 1.6 L/s (25 gpm)
Max Head 11 m (36')
Max Flow 3.8 L/s (61 gpm)
Solid Passage 2 mm (0.1")
Diameter 252 mm (9.9")
Height 335 mm (13.2")
Weight 11.3 kg (25 lb)
60Hz
  SMART VOX BASE 400
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 0.4 kW (0.5 HP)
Rated Head 8 m (26')
Rated Flow 1.6 L/s (25 gpm)
Max Head 11 m (36')
Max Flow 3.6 L/s (58 gpm)
Solid Passage 2 mm (0.1")
Diameter 252 mm (9.9")
Height 335 mm (13.2")
Weight 11.3 kg (25 lb)

Download File

Brochure - Handy & Residue Pumps 50 Hz 60 Hz
Datasheet - SMART VOX BASE 400 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 1-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Miniature Thermal Protector
 • Start Method Capacitor-Run
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Semi-Vortex
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 6m (20') or longer upon request
Materials
 • Pump Casing Gray Iron
 • Impeller Synthetic Polymers
 • Motor Frame Aluminum
 • Motor Shaft Stainless Steel
 • Strainer Synthetic Polymers
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
