SMART 1500

DataSheet

50Hz
  SMART 1500
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 1.5 kW (2 HP)

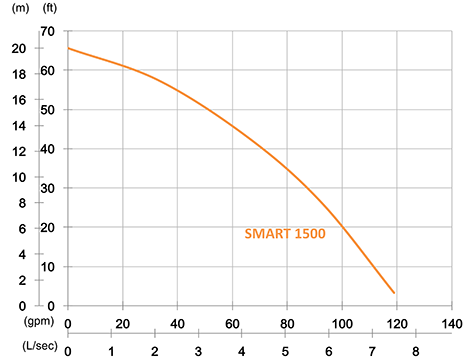

Rated Head 13 m (43')
Rated Flow 4.2 L/s (66 gpm)
Max Head 20 m (66')
Max Flow 7.5 L/s (119 gpm)
Solid Passage 9 mm (0.4")
Diameter 225 mm (8.9")
Height 433 mm (17")
Weight 24 kg (53 lbs)
60Hz
  SMART 1500
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 1.5 kW (2 HP)
Rated Head 13 m (43')
Rated Flow 4.2 L/s (66 gpm)
Max Head 20 m (66')
Max Flow 7.5 L/s (119 gpm)
Solid Passage 9 mm (0.4")
Diameter 225 mm (8.9")
Height 433 mm (17")
Weight 24 kg (53 lbs)

Download File

Brochure - Handy & Residue Pumps 50 Hz 60 Hz
Datasheet - SMART 1500 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 1-Phase,3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method 1-Phase • Capacitor-Run,3-Phase • D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Opened
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Gray Iron
 • Motor Frame Stainless Steel
 • Motor Shaft Stainless Steel
 • Outer Case Stainless Steel
 • Strainer Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
