GOCUT 37

DataSheet

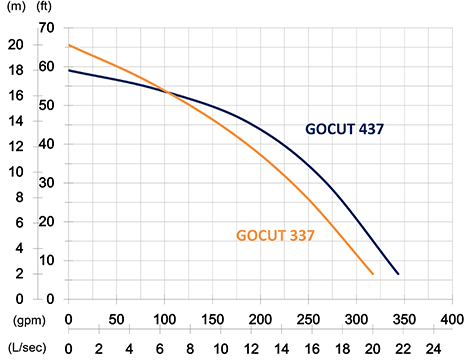

50Hz
  GOCUT 337 GOCUT 437
Discharge Outlet 80 mm (3") 100 mm (4")
Shaft Speed 2850 rpm 2850 rpm
Rated Output 3.7 kW (5 HP) 3.7 kW (5 HP)
Rated Head 13 m (43') 14 m (46')
Rated Flow 10.8 L/s (172 gpm) 11.7 L/s (185 gpm)
Max Head 20 m (66') 18 m (59')
Max Flow 20 L/s (317 gpm) 21.7 L/s (343 gpm)
Solid Passage 37 mm (1.5") 37 mm (1.5")
Diameter 482 mm (19") 482 mm (19")
Height 642 mm (25.3") 642 mm (25.3")
Weight 60 kg (132 lbs) 60 kg (132 lbs)
60Hz
  GOCUT 337 GOCUT 437
Discharge Outlet 80 mm (3") 100 mm (4")
Shaft Speed 3450 rpm 3450 rpm
Rated Output 3.7 kW (5 HP) 3.7 kW (5 HP)
Rated Head 14 m (46') 13 m (43')
Rated Flow 10.8 L/s (172 gpm) 10 L/s (159 gpm)
Max Head 20 m (66') 20 m (66')
Max Flow 20 L/s (317 gpm) 20 L/s (317 gpm)
Solid Passage 37 mm (1.5") 37 mm (1.5")
Diameter 482 mm (19") 482 mm (19")
Height 642 mm (25.3") 642 mm (25.3")
Weight 60 kg (132 lbs) 60 kg (132 lbs)

Download File

Brochure - Sewage Pumps 50 Hz 60 Hz
Datasheet - GOCUT 337 50 Hz 60 Hz
Datasheet - GOCUT 437 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Semi-Open Channel Cutter
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Gray Iron
 • Motor Frame Gray Iron
 • Motor Shaft Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
