GOBITS 55

DataSheet

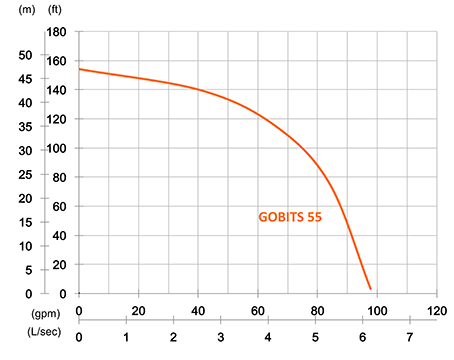

50Hz
  GOBITS 55
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 5.5 kW (7.5 HP)
Rated Head 35 m (115')
Rated Flow 4.2 L/s (66 gpm)
Max Head 47 m (154')
Max Flow 6.2 L/s (98 gpm)
Diameter 285 mm (11.2")
Height 634 mm (25")
Weight 61 kg (135 lbs)
60Hz
  GOBITS 55
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 5.5 kW (7.5 HP)
Rated Head 35 m (115')
Rated Flow 4.2 L/s (66 gpm)
Max Head 50 m (164')
Max Flow 6.2 L/s (98 gpm)
Diameter 285 mm (11.2")
Height 634 mm (25")
Weight 61 kg (134 lbs)

Download File

Brochure - Sewage Pumps 50 Hz 60 Hz
Datasheet - GOBITS 55 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Vortex
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Gray Iron
 • Motor Frame Gray Iron
 • Motor Shaft Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
