GOBITS 37

DataSheet

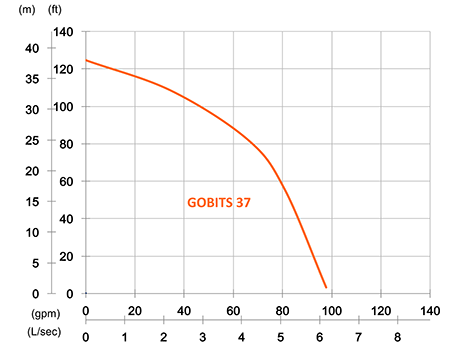

50Hz
  GOBITS 37
Discharge Outlet 50 mm (2")
Shaft Speed 2850 rpm
Rated Output 3.7 kW (5 HP)
Rated Head 25 m (82')
Rated Flow 4.2 L/s (66 gpm)
Max Head 38 m (125')
Max Flow 6.2 L/s (98 gpm)
Diameter 285 mm (11.2")
Height 634 mm (25")
Weight 55 kg (121 lbs)
60Hz
  GOBITS 37
Discharge Outlet 50 mm (2")
Shaft Speed 3450 rpm
Rated Output 3.7 kW (5 HP)
Rated Head 25 m (82')
Rated Flow 4.2 L/s (66 gpm)
Max Head 38 m (125')
Max Flow 6.2 L/s (98 gpm)
Diameter 285 mm (11.2")
Height 634 mm (25")
Weight 55 kg (121 lbs)

Download File

Brochure - Sewage Pumps 50 Hz 60 Hz
Datasheet - GOBITS 37 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbide VS Ceramic / Carbon
Impeller Type Vortex
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Gray Iron
 • Motor Frame Gray Iron
 • Motor Shaft Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
