GOVOX-G 22

DataSheet

50Hz
  GOVOX-G 322
Discharge Outlet 80 mm (3")
Shaft Speed 2850 rpm
Rated Output 2.2 kW (3 HP)

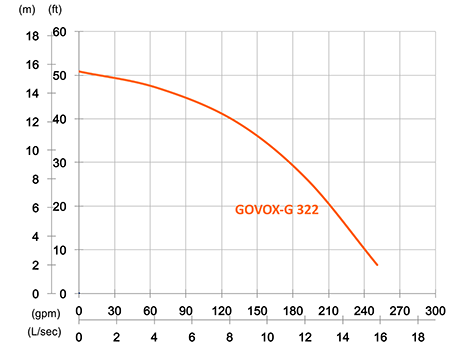

Rated Head 12 m (39')
Rated Flow 8.3 L/s (132 gpm)
Max Head 15.5 m (51')
Max Flow 15.8 L/s (251 gpm)
Solid Passage 52 mm (2")
Diameter 464 mm (18.3")
Height 643 mm (25.3")
Weight 60 kg (132 lbs)
60Hz
  GOVOX-G 322
Discharge Outlet 80 mm (3")
Shaft Speed 3450 rpm
Rated Output 2.2 kW (3 HP)
Rated Head 12 m (39')
Rated Flow 8.3 L/s (132 gpm)
Max Head 16 m (52')
Max Flow 15 L/s (238 gpm)
Solid Passage 47 mm (1.9")
Diameter 464 mm (18.3")
Height 643 mm (25.3")
Weight 60 kg (132 lbs)

Download File

Brochure - Sewage Pumps 50 Hz 60 Hz
Datasheet - GOVOX-G 322 50 Hz 60 Hz

Specifications

Type Electric Submersible Pumps
Phase 3-Phase
Classification IP 68
Motor
 • Type Induction Motor
 • Poles 2 Pole
 • Insulation Class F
 • Protector Circle Thermal Protector
 • Start Method D.O.L.
Lubricant Food Grade (ISO VG32)
Shaft Seal
 • Type Double Mechanical Seal
 • Desc. Silicon Carbon VS Ceramic / Carbon
Impeller Type VorteX
Bearings C3 Shielded ball bearings
Cable
 • Type PVC (CSA Certified) / H07RN-F
 • Length 10m (33') or longer upon request.
Materials
 • Pump Casing Gray Iron
 • Impeller Gray Iron
 • Motor Frame Gray Iron
 • Motor Shaft Stainless Steel
Max. Liquid Temp. 40˚C (104˚F)
Max. Sub. Depth 20m (66")
pH Range pH 5 - pH 8
